The warp processor can apply pixel warping conforming to MPCDI v2.0 on 2D media level 2 and 3D simulation level 2 to a video stream at full resolution. The 4K version of LUNA can process resolutions up to 4K at 60 Hz or pixel clock up to 600 Mpixels/sec.

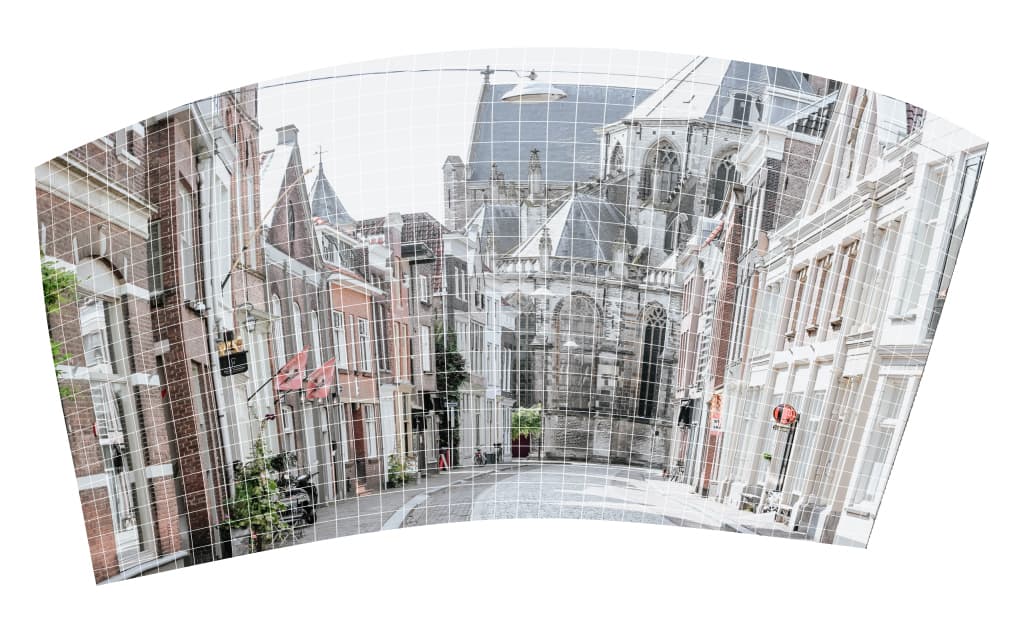

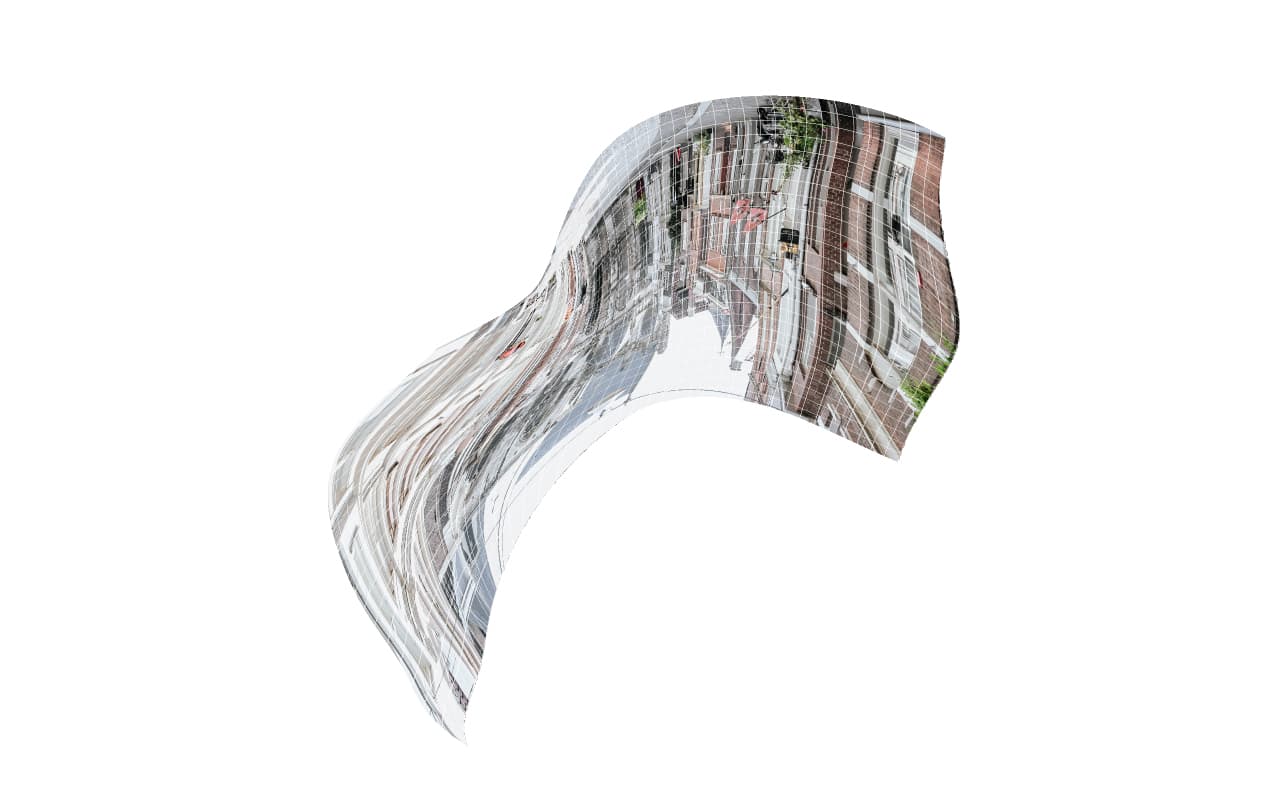

At resolutions of 3840x2400px and 4096x2160px at 60 Hz or 2560x1600px at 120 Hz in true 10-bit per color (24 bits per color internal), 1.8 times as many pixels can be written to the framebuffer, allowing an average image stretch of 80% at full resolution. Thanks to pixel warping, complex or nonlinear warp geometry is possible, such as flipping and rotating the image by any angle.

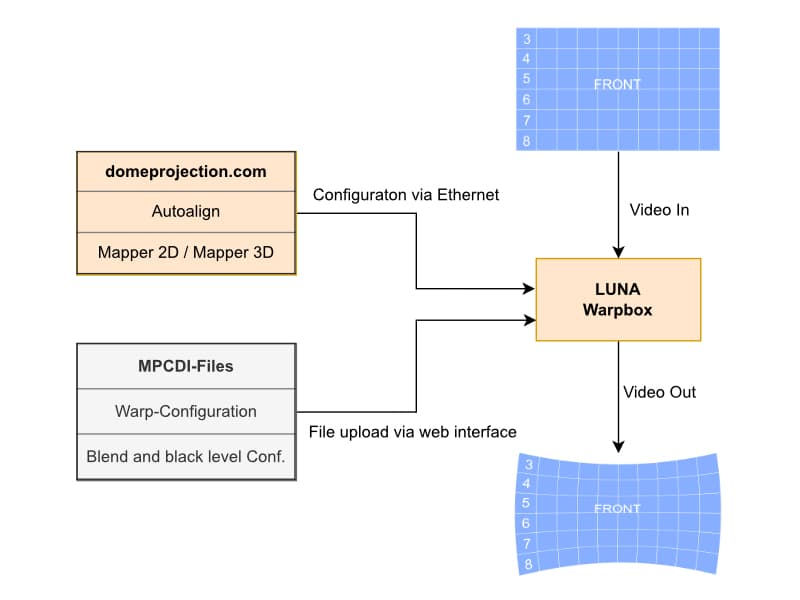

The warp processor is implemented with low latency interframe processing capabilities, meaning the write framebuffer can be safely read while writing. There is a fixed processing time of 50 image lines for any resolution, with the vertical warp shift making up the rest of the total processing time. LUNA is integrated with ProjectionTools, providing convenient multi-channel projection support.
